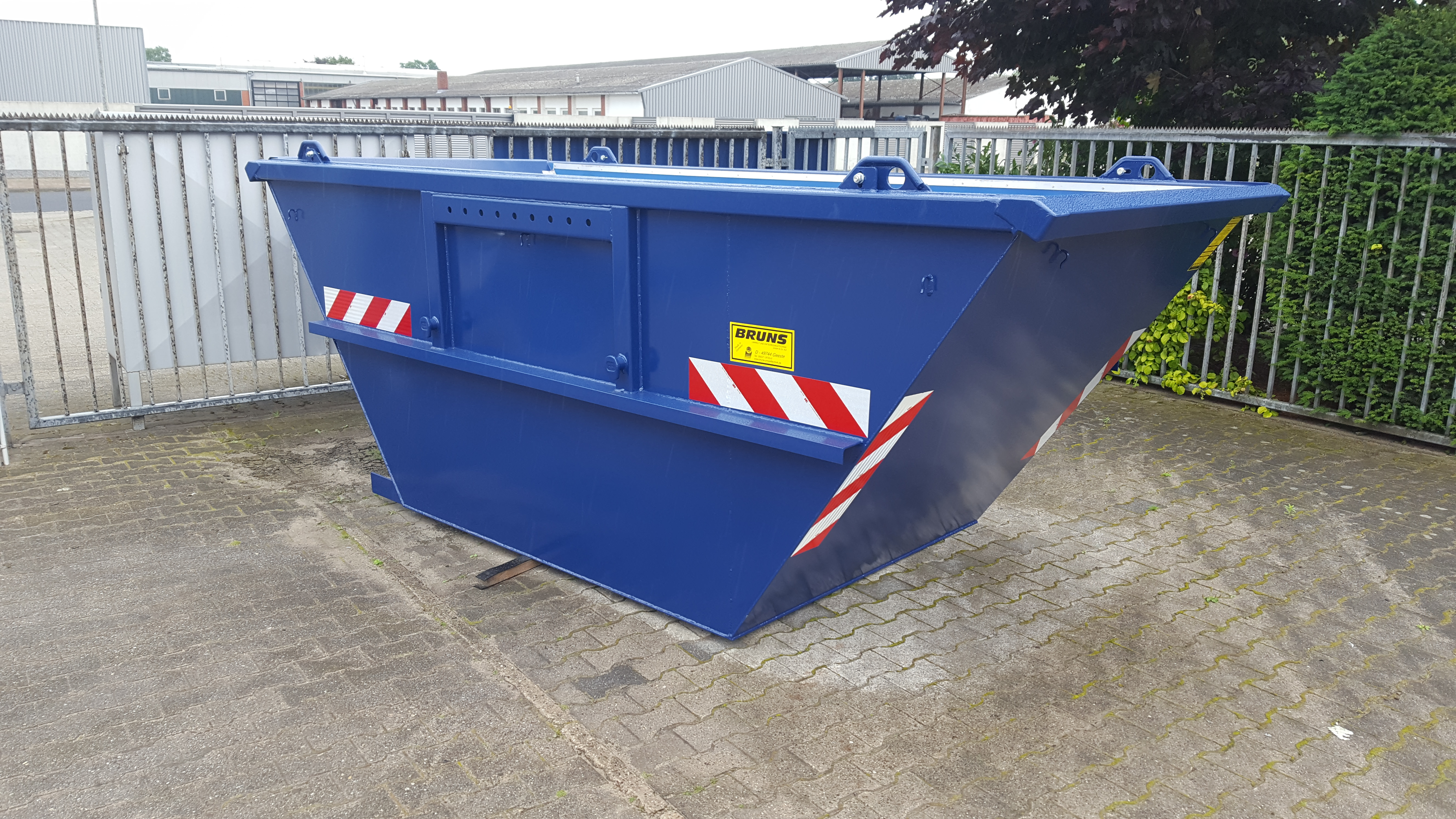

Design
- Skip tipper system according to DIN 30720 (but only one-sided tilt bearing)
- Symmetrical design
- Stable upper end profile all around
- Upper end profile reinforced on the outside at the corners
- Conically built
- Internal width at the bottom 1,650 mm
- Internal width at top 1,720 mm
- Base plate 6 mm, material S 235 JR
- Side panels 4 mm all around, material S 235 JR
- All sheets welded throughout inside and outside
- Side protection profile 100 mm over the entire length
- Single-sided triple tilt bearing, half installed
- Side perforated strip as a lashing strip for stacked troughs
- Plan hooks all around
- Contour defined according to DIN

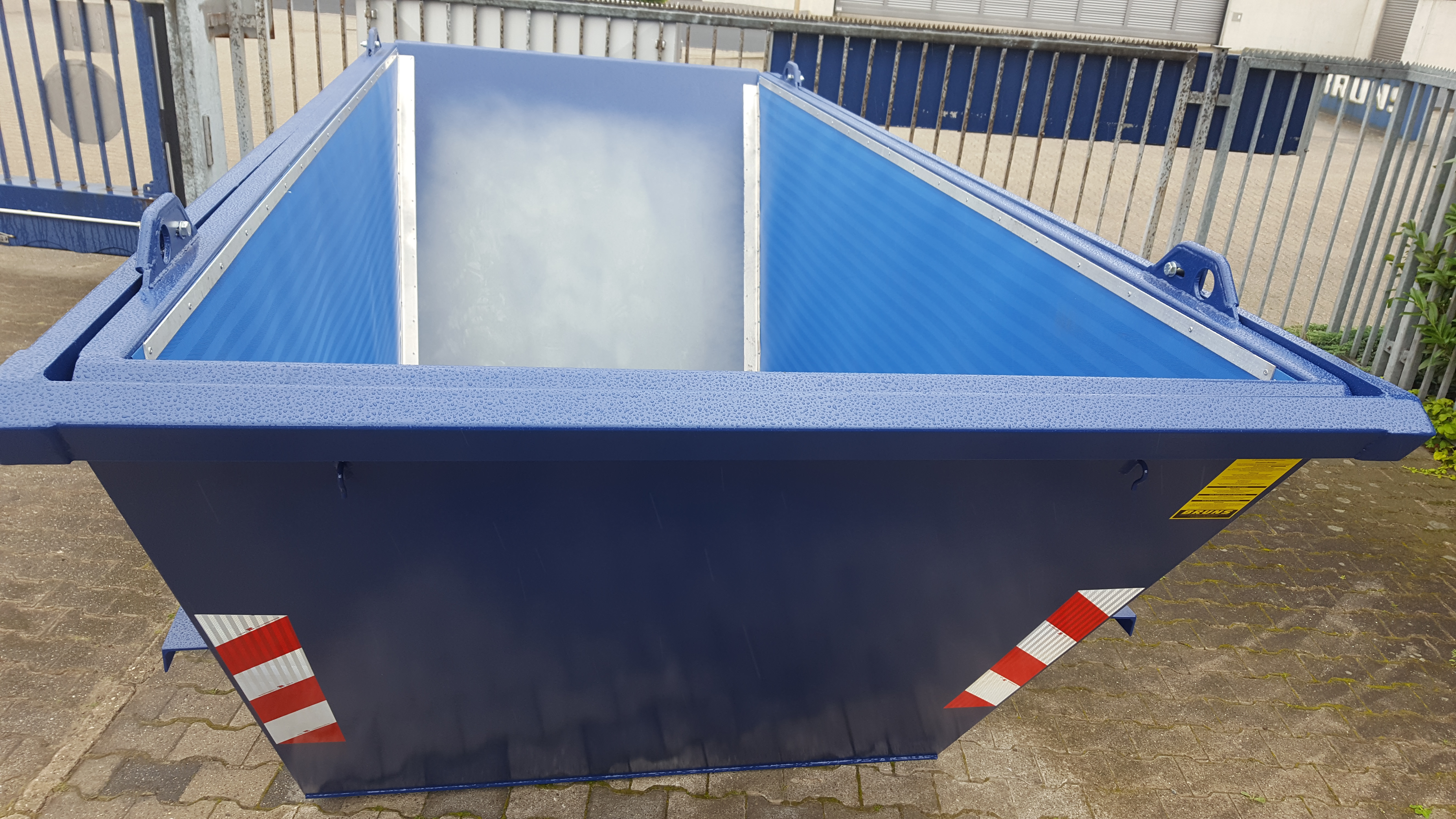

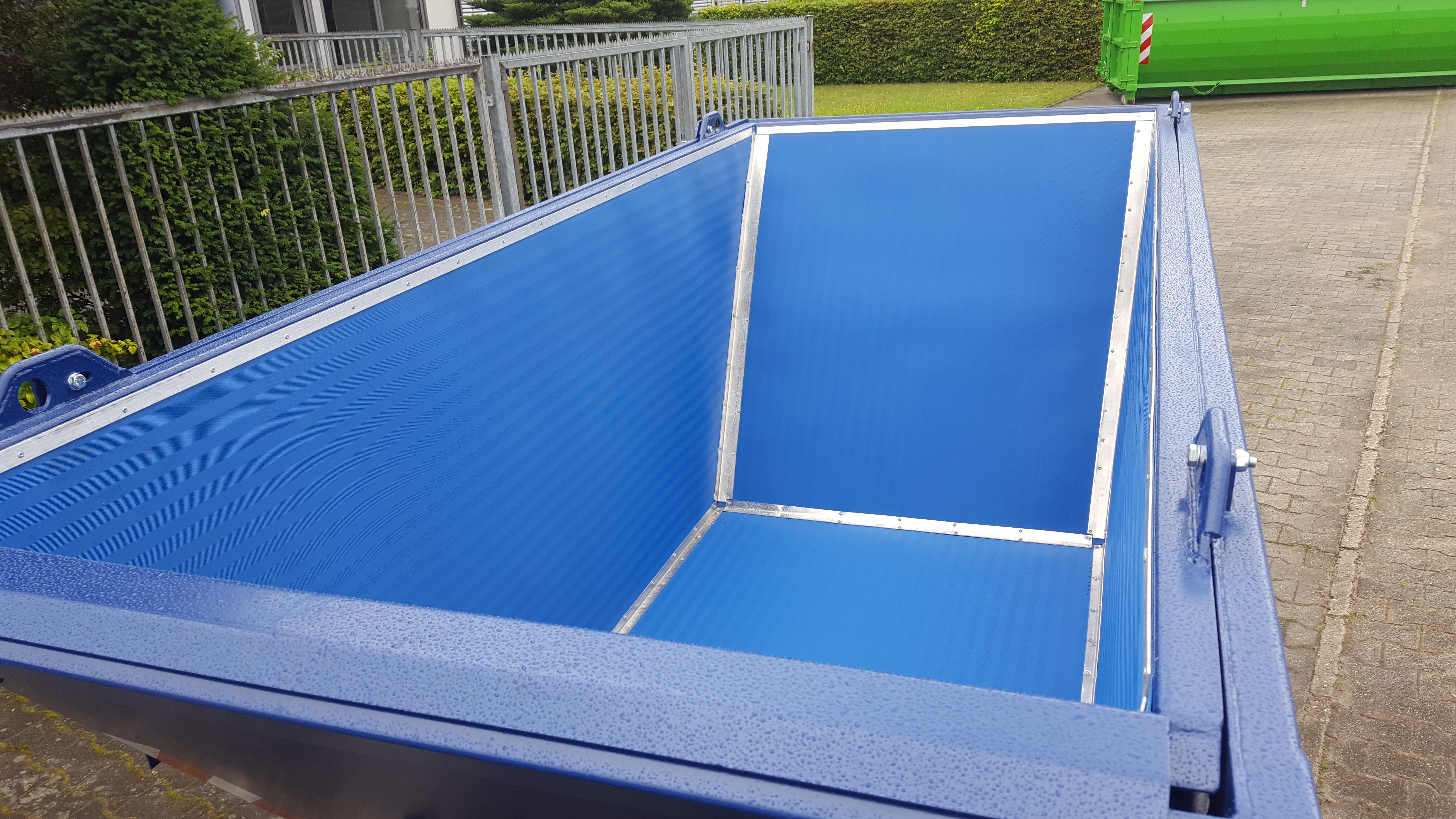

Drainage system
- Built-in filter basket made of perforated sheet metal
- Removable with skip tipper
- Filter basket consisting of perforated sheet metal stable substructure
- Perforated sheet metal 10 mm perforation / 26 mm pitch, 3 mm sheet thickness
- Perforated sheet metal on the floor, side walls and front wall
- A smooth sheet metal on the discharge side
- Filter basket built on a stable substructure
- Perforated sheet metal covered and secured with high-strength plastic filter fabric
- Water drains 2 inches with slider 2 pieces on the discharge side
Painting
- Trough primed inside and outside
- Additionally painted on the outside high-quality 2-component paint
- Painted in RAL 5003
- Warning markings according to DIN
